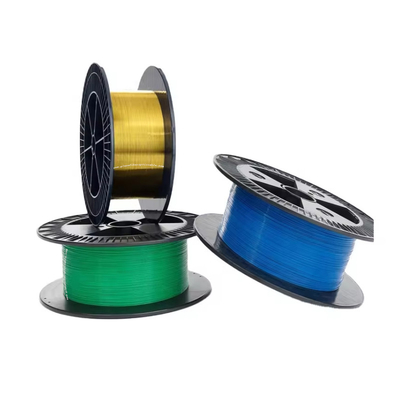

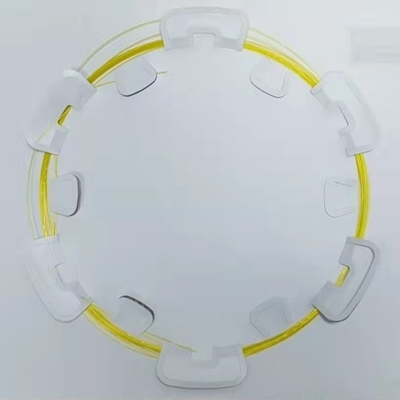

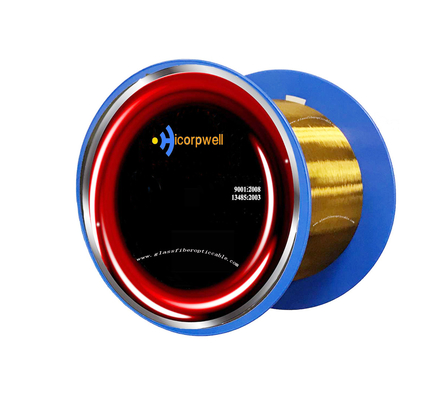

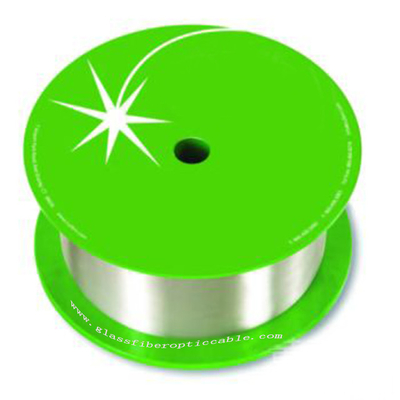

105-125- 12NA 15NA 22NA Low OH Bare Optical Fiber Core Dia 105 um Cladding Dia 125 um Coating Dia 250 um
|

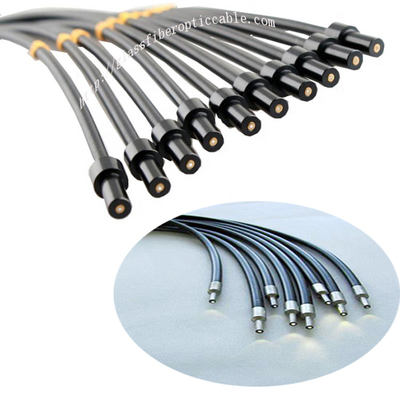

Patch Cables Available with these Fibers |
|||
| Item | Fiber Used | Description | Length |
| M14 | HCW050LGA | SMA to SMA | 1, 2, 5, 10, or 20 m |
| M42 | FC/PC to FC/PC | 1, 2, or 5 m | |
| M16 | FC/PC to SMA | 1 m | |
| M50 | SMA to SMA, AR Coated for VIS or NIR | 2 m | |
| MR14 | SMA to SMA, Armored | 1 or 2 m | |
| BFY50 | HCW050LGA, HCW050UGA |
SMA Y-Bundle | 2 m |
| M15 | HCW105LCA | SMA to SMA | 1, 2, 5, 10, or 20 m |
| M43 | FC/PC to FC/PC | 1, 2, or 5 m | |
| M18 | FC/PC to SMA | 1 m | |
| M105 | SMA to SMA, AR Coated for VIS or NIR | 2 m | |
| MR15 | SMA to SMA, Armored | 1 or 2 m | |
| M105x-50-1 | FC/PC to FC/PC, Beamsplitter-Coated | 1 m | |
| M105x-P01-1 | FC/PC, Mirror-Coated | 1 m | |
| BFY105 | HCW105UCA, HCW105LCA |
SMA Y-Bundle | 2 m |
| M91 | HCW200UEA | FC/PC to SMA | 1 m |
| M36 | HCW200LEA | FC/PC to SMA |
1 m
|
Specification :
| Item | Wavelength Range |
Hydroxyl Content |
Core Diameter |
Cladding Diameter |
Coating Diameter |
Core / Cladding |
Coating | Proof Test | Stripping Tool |
| HCW050UGA | 250 - 1200 nm | High-OH | 50 μm ± 2% | 125 ± 1 μm | 250 μm ± 4% | Pure Silica / Fluorine-Doped Silica |
Acrylate | ≥100 kpsi | T08S13 |
| HCW050LGA | 400 - 2400 nm | Low-OH | |||||||
| HCW105UCA | 250 - 1200 nm | High-OH | 105 μm ± 2% | 125 ± 1 μm | 250 μm ± 4% | T08S13 | |||
| HCW105LCA | 400 - 2400 nm | Low-OH | |||||||
| HCW200UEA | 250 - 1200 nm | High-OH | 200 μm ± 2% | 220 ± 2 μm | 320 μm ± 5% | T10S13 | |||
| HCW200LEA | 400 - 2400 nm | Low-OH |
Solarization may occur at wavelengths below 300 nm.We also provide solarization multimode fiber.
